Automatic doors are widely used in industrial facilities, logistics centers, commercial buildings, and public entrances. As door sizes increase and operating speeds become faster, reliable safety protection at the door edge is essential to prevent injury, equipment damage, and downtime.

The Safety Edge Infrared Photoelectric Sensor with Integrated Diagnostic System provides a modern, reliable solution for automatic door safety. By combining infrared photoelectric detection with intelligent diagnostics, it ensures fast response, stable operation, and simplified maintenance throughout the door’s lifecycle.

Application Challenges in Automatic Door Safety

Traditional mechanical safety edges or simple electrical contact systems often face limitations in real-world applications:

• Delayed response due to mechanical deformation

• Reduced reliability on wide or heavy doors

• Sensitivity to wind load, vibration, and door bending

• Difficulty in troubleshooting and maintenance

• Limited compatibility with modern door controllers

These challenges can lead to false triggers, undetected obstructions, or increased maintenance costs.

Our Safety Edge Solution

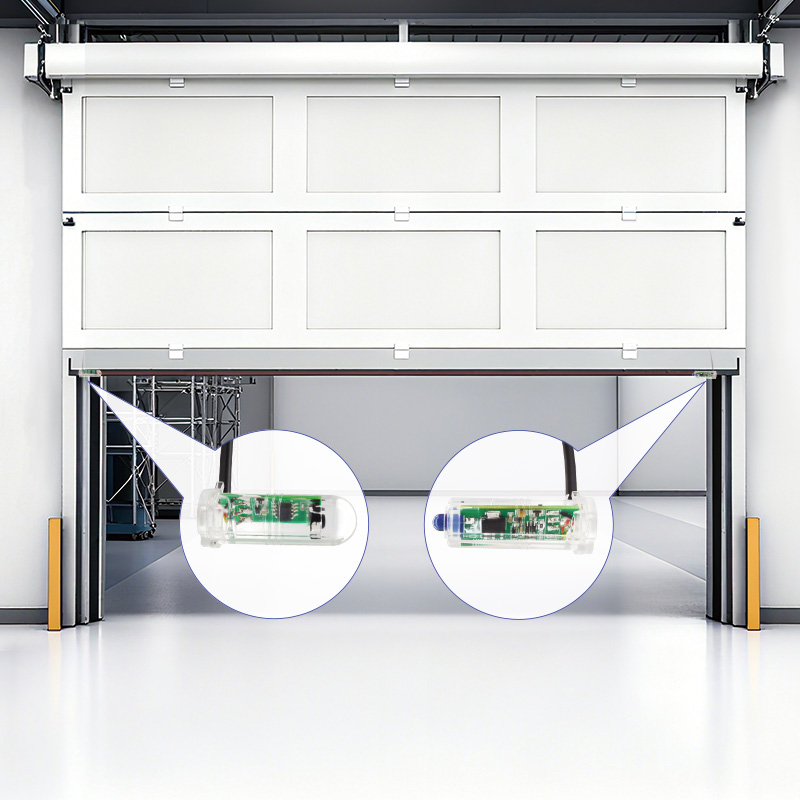

Our Safety Edge Infrared Photoelectric Sensor is designed specifically to overcome these limitations. Installed along the leading edge of the automatic door, it continuously monitors the safety zone and immediately signals the door controller when contact or obstruction occurs.

Unlike traditional contact-only edges, the sensor uses infrared photoelectric detection, enabling stable and precise performance even under challenging operating conditions.

Key Advantages of Our Safety Edge Sensor

1. Fast and Reliable Safety Response

The infrared photoelectric detection system reacts instantly when the safety edge is triggered, ensuring immediate door stop or reversal. This rapid response significantly reduces the risk of personal injury and equipment damage, especially in high-traffic environments.

2. Integrated Diagnostic System for Easy Maintenance

A major advantage of our solution is the built-in diagnostic system with visual LED indication. During power-up, the sensor automatically evaluates the optical condition of the rubber profile and displays the result through LED flash codes.

This allows installers and maintenance personnel to:

• Quickly verify correct installation

• Identify operating status at a glance

• Detect potential issues before they lead to failures

As a result, maintenance time and service costs are greatly reduced.

3. High Stability in Harsh Door Environments

Automatic doors are often exposed to wind pressure, vibration, and mechanical bending. Our safety edge sensor is designed to maintain reliable performance under these conditions, offering:

• High immunity to electromagnetic interference

• Resistance to voltage reversal and short circuits

• Stable operation on wide or heavy doors

This makes it ideal for industrial and commercial door applications where reliability is critical.

4. Wide Compatibility with Door Control Systems

The sensor supports standard high/low-level output signals and integrates easily with most automatic door and industrial door control units. This ensures smooth system integration without the need for complex modifications or additional interfaces.

5. Durable Design for Long-Term Use

With an IP67 protection rating, robust housing materials, and high-quality wiring, the safety edge sensor is built for long-term operation in demanding environments. It performs reliably across a wide temperature range, making it suitable for both indoor and semi-outdoor installations.

Typical Automatic Door Applications

• Industrial sectional doors

• Rolling shutter doors

• Warehouse and logistics doors

• Commercial automatic sliding doors

• Factory and workshop entrances

Conclusion

The Safety Edge Infrared Photoelectric Sensor with Integrated Diagnostic System provides a comprehensive and future-ready safety solution for automatic door systems. By combining fast response, intelligent diagnostics, high stability, and easy integration, it delivers superior protection while reducing maintenance effort and operational costs.

For manufacturers, system integrators, and facility operators, this solution represents a reliable, efficient, and intelligent approach to automatic door safety.
