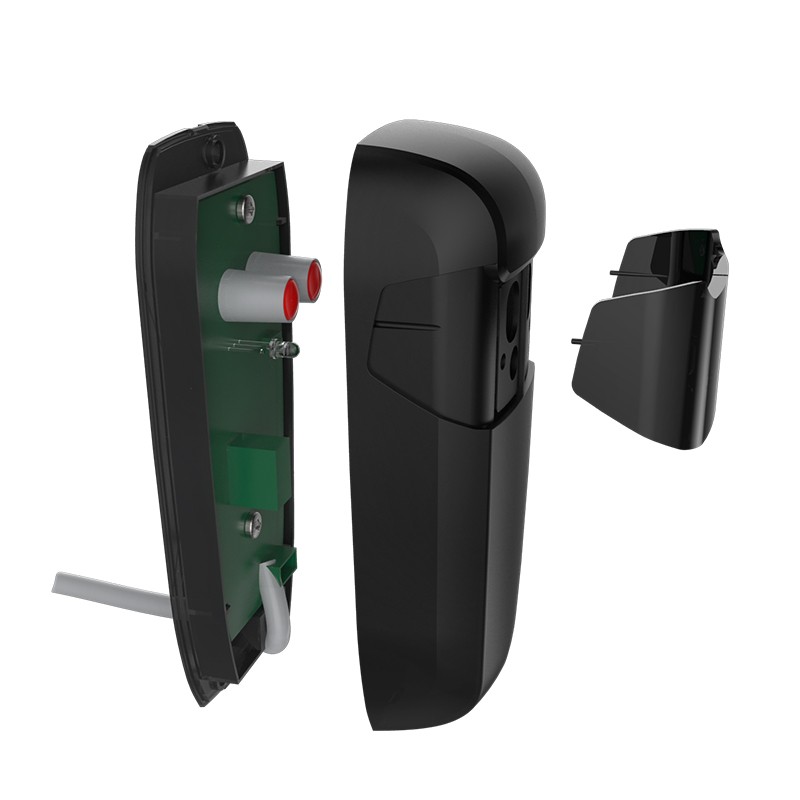

LSR, a laser safety sensor, is the best alternative of infrared photocell and loop sensor, which is more convenient on installation and maintenance. It can protect pedestrian and vehicle from contact with the gate and barrier boom. One piece is enough to use, without road works. The automatic learning of environment makes LSR great adaptability in different environment.
Function and Advantages
*Convenient installation, one piece is enough, no impact on the ground
*Waterproof and dustproof
*Automatic learning of environment
*Adjustable detecting range: 0-8m
*Long service life
*Fashion and patent design
| Technology: | Laser TOF |
|---|---|
| Detection Mode : | Motion and presence |
| Detection Range: | 0-8 m |
| Supply Voltage : | 12V - 24V AC/DC |
| Power consumption : | < 1W |
| Output Current : | 1A (Max) |
| Response Time: | <100ms |
| Temperature Range : | from -40 ℃ to +80℃ |
| Current Consumption: | < 100mA |
| Retention Time : | 1s |
| Degree of Protection : | IP54 |
| Dimension : | 121 mm (L) x 29 mm (H) x 52.5 mm (W) |
| Material : | ABS & PC |
| Cable Length : | 1.5 m |
| Application Fields: | Barrier gate/Industrial door/Turnstile/ Escalator and moving sidewalks/Vehicle counting etc |
LSR - QINUO.pdf DOWNLOAD
